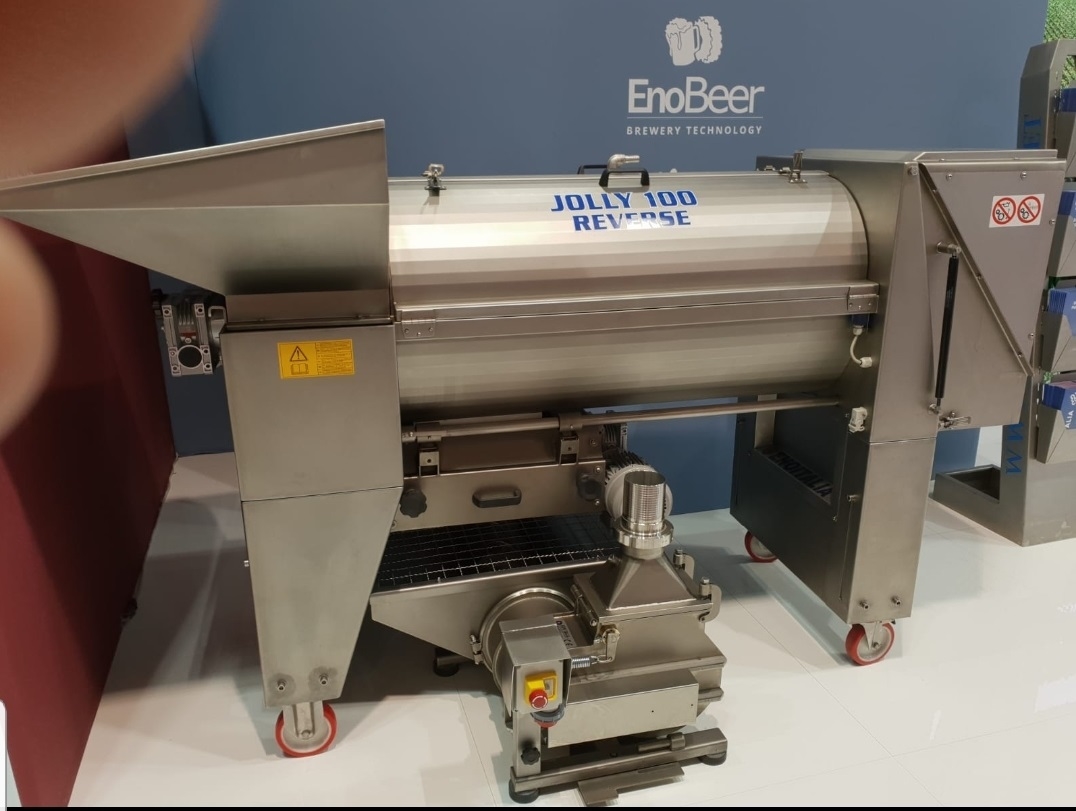

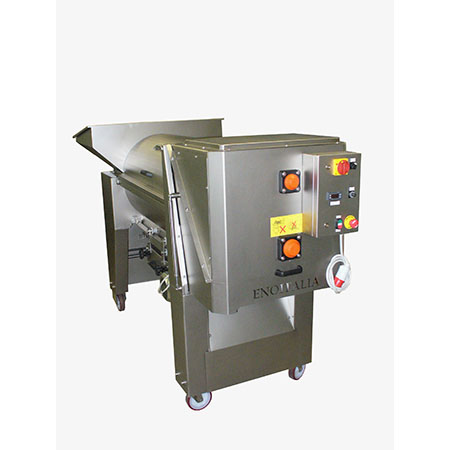

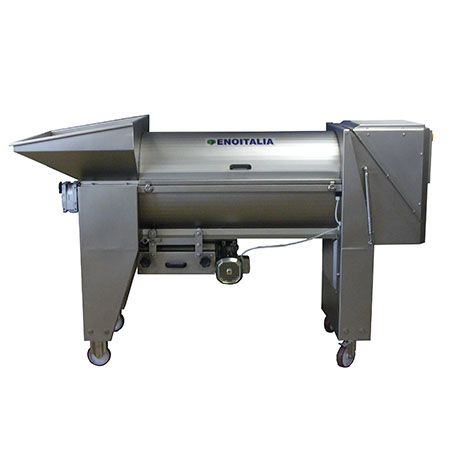

JOLLY 100 REVERSE

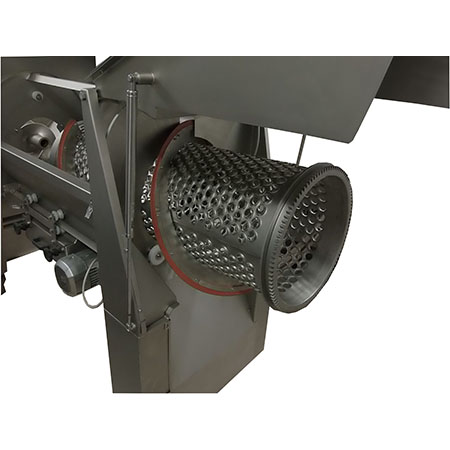

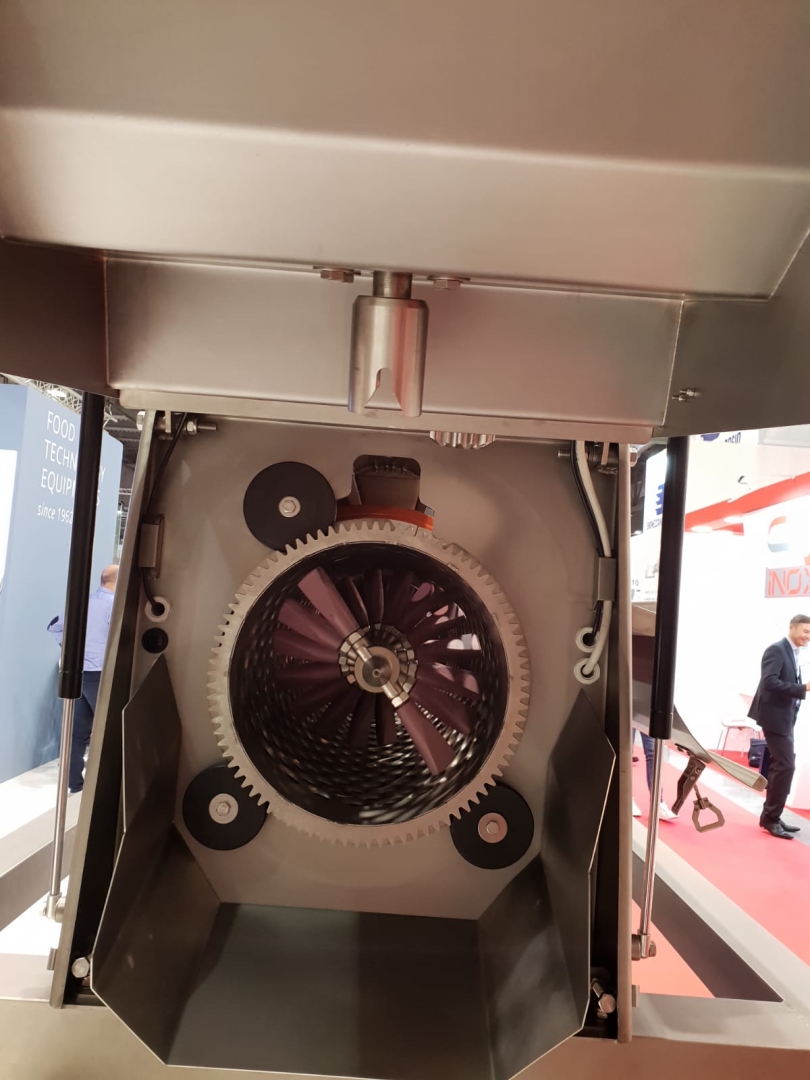

Destemmer crusher ideal for quality winery , by hand or automatically harvest with the possibility to be integrated in any selection line . The crusher is made with soft rubber rollers adjustable , removable , and with independent engine. Destemming basket diameter 400mm and length 1250mm , made professional type antilaceration system . The basket is equipped with the exclusive system of rubber driven.
Telescopic legs with adjustable height from 1530 to 1930mm . Loading hopper with independent engine, equipped with a filter for extracting liquid.
Opening system front side, and disassembly machinery without the need of any tool . Washing systems integrated
The standard JOLLY 100 REVERSE is equipped with 3 engines: an electronic speed control for destemmer shaft and the basket , a variable speed motor for the loading hopper , a motor for the crusher unit .
Features:
- Production capacity 7000-12000 kg / h
- Motorized rollers 0.75 kw
- System press / no-press
- Variable speed mechanical hopper 1.5 kw
- Electronic speed variator 2.2 kw
- Destemmer shaft with adjustable cylinders
- Basket in stainless steel, professional type anti-laceration
- Extraction of the liquid from the hopper with pump fitting connection
- Rubber screw system
- n°2 lifting eyes
- Telescopic legs
- Integrated washing system
