Description

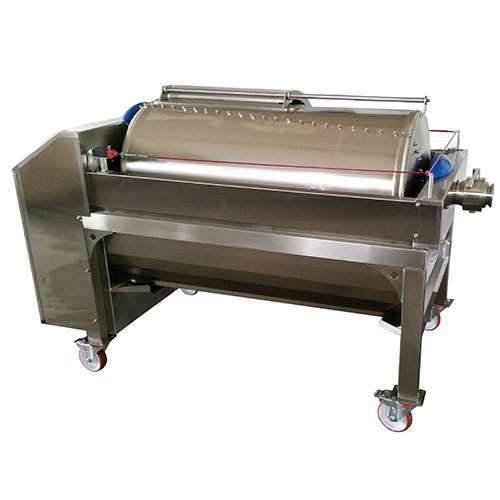

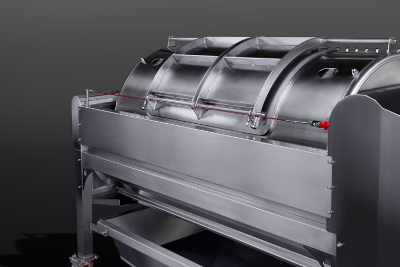

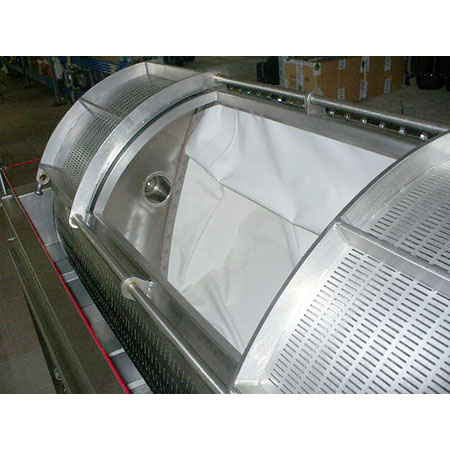

The pneumatic press lateral membrane GAMMA 5 is the ideal solution for getting top quality products in pressing both of freshly harvested grapes that fermented marc. Made entirely of stainless steel, with one large central opening for easy loading and unloading. The technology used allows to manage every stage of pressing. The plc software allows to use the machine in automatic, with 5 preset and 2 custom programs, and fully manual. Availability is the version with a perforated cylinder, and closed with canal.
Equipment:
Axial loading with ball valve stainless steel DN80
Door for maceration , with automatic programming
Collection tank with a conical floor, mounted on wheels and equipped with stainless steel grill on the discharge
Internal device for disintegration of the fermented mass
Cleaning system with complete openness and tilting door
Air compressor and double fan
Castors with locking brake
Extension legs for unloading by bins (optional)
Safety system with emergency stop
Capacity 1900 kg fermented grapes
Capacity 1400 kg destemmed grapes
Capacity 400 kg whole grapes
Power 3.1 kw
Dimensions 1040x2130x1360mm
